No specification added.
| Audio and Video | ||
| IP Camera Input | 8 Channels | |
| Display | ||

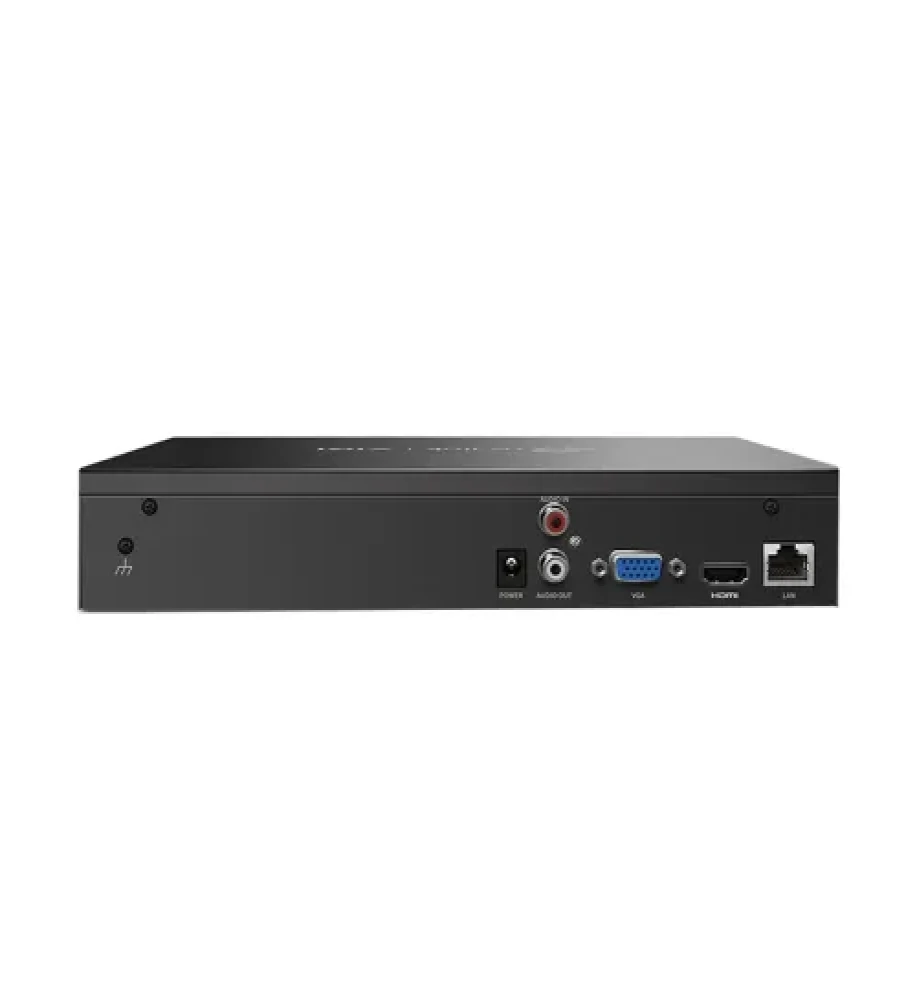

| Interface | 2 x USB 2.0 1 x RJ45 1 x HDMI 1 x VGA 1 x Audio In 1 x Audio Out | |
| Resolution | up to 5 MP | |
| Decoding Capacity | 1-ch 5MP, 2-ch 2MP, 4-ch 720p | |
| Recording | ||
| Compression | Video: SH.265+ / H.265 / H.264+ / H.264 | |
| Resolution | 5 MP/ 4 MP/3 MP/1080p/UXGA/ 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF | |
| Playback And Backup | ||
| Search Mode | Manual; schedule (general; MD; alarm; MD & alarm; intelligent) | |
| Playback Function | Synchronous Playback: 4 Channel | |
| Backup Mode | USB device | |
| Network | ||
| Ethernet Port | 1 x RJ45 10/100 Mbps Self-Adaptive Ethernet | |
| Storage | ||
| Internal HDD | 1 SATA ports, up to 10 TB | |
| Auxiliary Interface | ||
| USB | 2 x USB 2.0 | |
| Power | ||
| Power Supply | 12V DC | |
| Power Consumption | 4.25W (without disk), 13.10W (with disk) | |
| Component Environment | ||
| Operational Conditions | –10 °C to +55 °C (+10 °F to +131 °F) | |
| Construction | ||
| Dimensions | 246.2 x 148.2 x 42.6mm | |
| Net Weight | 0.5785 Kg | |
| Warranty | ||
| Manufacturing Warranty | 1 Year | |
| Product Code |
61209 |
|---|---|
| Product Size |
No Product Size |
| Product Color |
No Product Color |
